Lymow One Plus 5A Robotic Lawn Mower

Description

• Lymow One Plus 5A Robotic Lawn Mower
• Efficiently mows up to 1 acre daily
• Utilizes cyclone airflow for uniform cuts
• Navigates with RTK and VSLAM technologies
• Handles slopes up to 45° with tracked treads
• Avoids obstacles using AI vision sensors

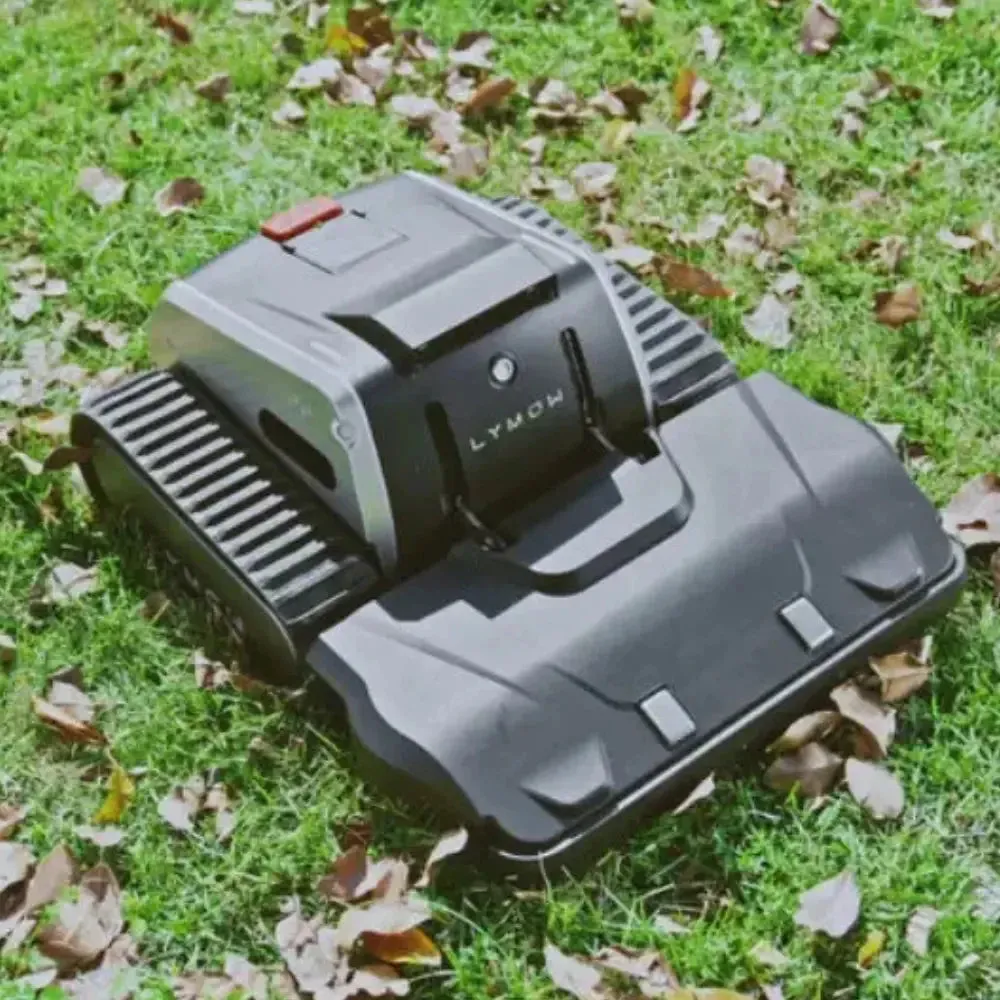

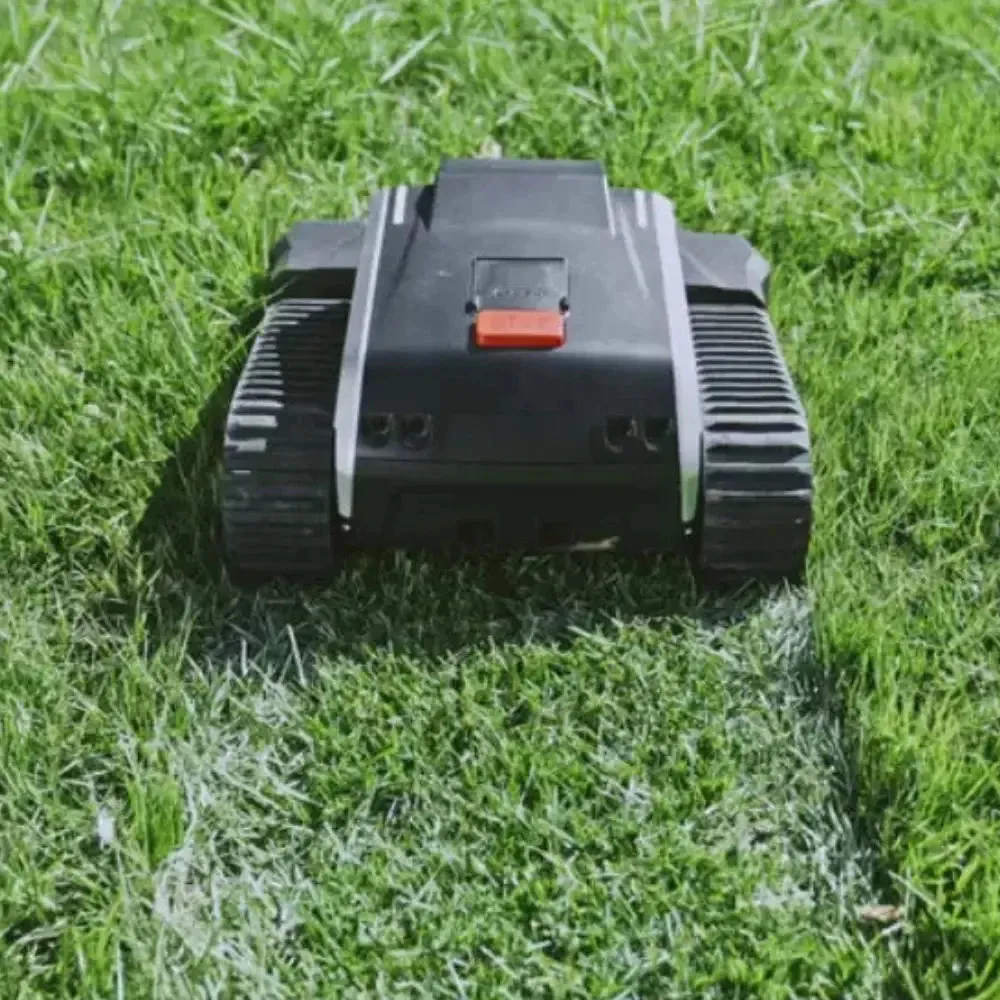

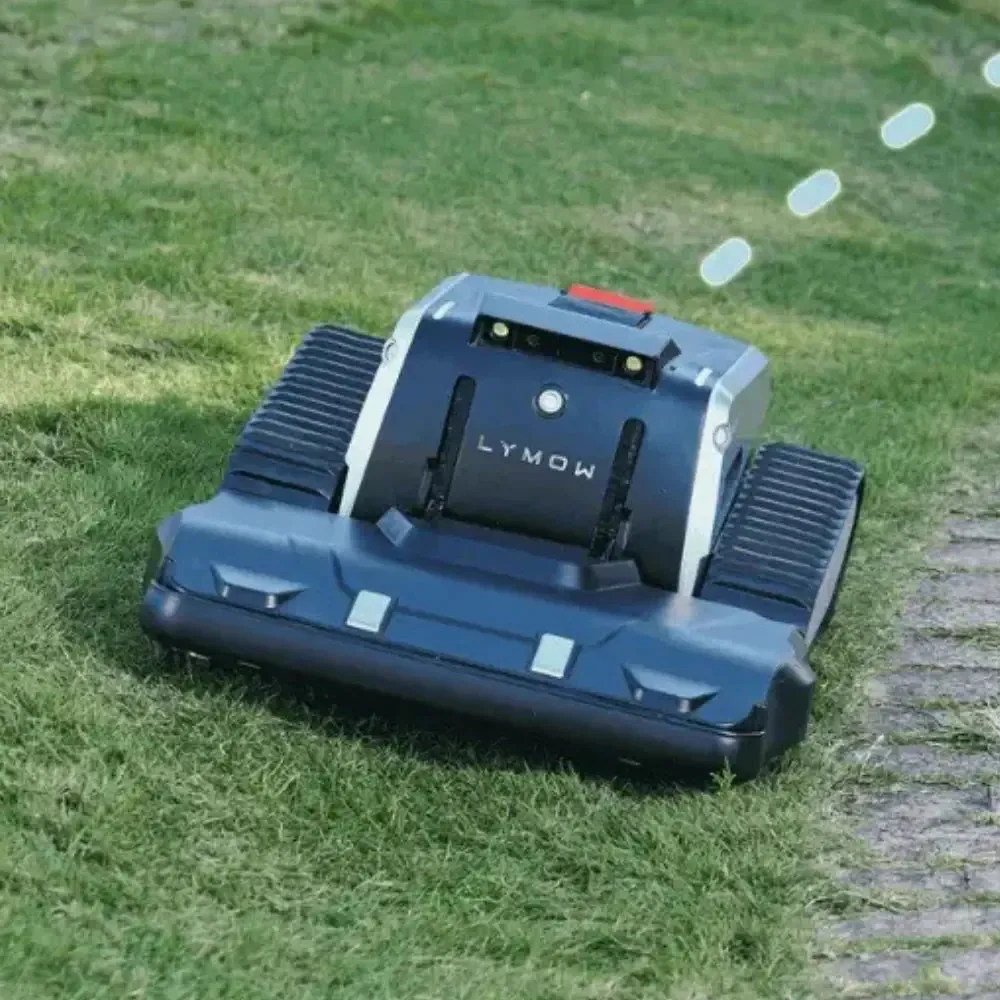

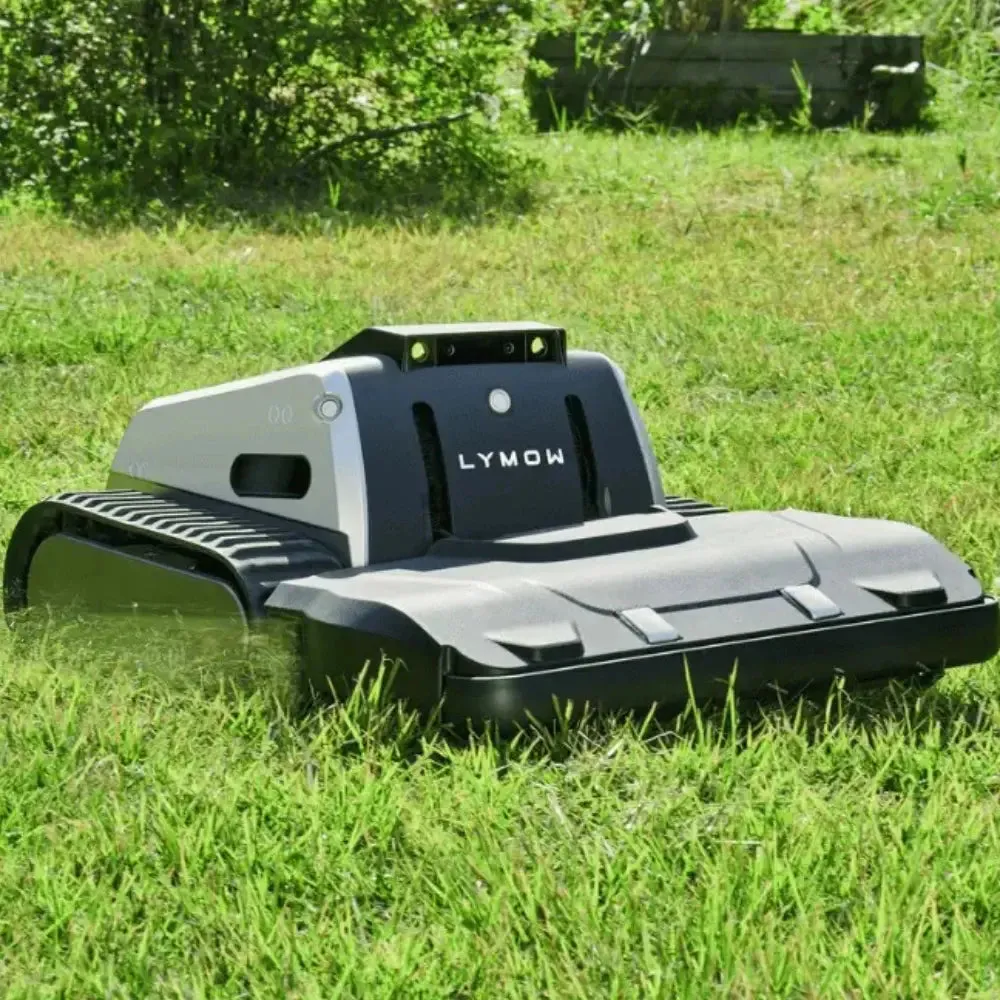

The Lymow One Plus 5A Robotic Lawn Mower is an advanced lawn maintenance device engineered to efficiently mow up to one acre per day. It is equipped with dual rotary blades that utilize cyclone airflow technology, ensuring cleaner and more uniform cuts. The mower is adept at handling challenging landscapes, thanks to its terrain master system with tracked treads, which provides stable traction on slopes up to 45 degrees and uneven surfaces.

This robotic mower incorporates wire-free smart navigation, employing RTK and VSLAM technologies for precise path planning and comprehensive coverage of the mowing area. It is also equipped with auto obstacle avoidance capabilities, utilizing AI vision and ultrasonic sensors to navigate seamlessly around obstacles.

Note: Ensure the mower is operated in accordance with safety guidelines to prevent accidents or damage.

• 1x Lymow One Plus 5A Robotic Lawn Mower
• 1x Charging Station
• 1x Charging Station Adaptor
• 10x Charging Station Extension Cable (1M each)
• 1x Ground Stake
• 1x RTK Reference Station
• 1x Radio Antenna
• 2x Mounting Pole
• 1x Wall Mount Bracket
• 1x Ground Stake for RTK
• 4x Expansion Bolt
• 1x RTK Power Adaptor
• 2x RTK Station Extension Cable (1M each)
• 1x User Manual
• 1x Quick Start Guide

• 29.5 x 23.6 x 12.6 inches (L x W x H)
• Obstacle Crossing Height: 2.8 inch
• Cutting Height: 1.2 - 4.0 inch
• Cutting Width: 16 inch

• Waterproof Level: IPX6
• Operating Ambient Charge Temperature: 37°F - 134°F
• Operating Ambient Discharge Temperature: 1°F - 134°F
• Storage Temperature: -4°F - 131°F
• Navigation System
  • Navigation Methods: RTK+VSLAM
  • RTK Coverage Radius: Up To 3,200 ft
  • Mowing Area Without RTK: 0.025 - 0.037 Acres
  • Mowing Time Without RTK: Up to 10 Minutes
  • Map Storage Capacity: 15 Acres
  • Multi-Zone Management: Up To 80 Zones
  • Connectivity: Bluetooth, Wi-Fi, And 4G
  • Cliff Detection: 2 Hall Sensors
  • Obstacle Avoidance: Al Vision + 5 Ultrasonic Sensors + 2 Hall Sensors
• Traverse System
  • Slope Handling: Up To 45° (100% Incline)
• Mowing System
  • Blade Type: Equipped: Rotary Mulching Blades
  • Mowing Speed: 1.0 ft/s - 3.3 ft/s
  • Blade Speed: 3,000 - 6,000 RPM
  • Rated Power Output: 680 W
  • Peak Power Output: 1,785 W
  • Maximum Coverage Per Hour: 0.23 Acres
  • Maximum Coverage Per Charge: 0.57 Acres
  • Maximum Coverage Per Day: 1.73 Acres
  • Mow Up To: 12 Acres
• Electric System
  • Battery Type: LiFePO₄
  • Battery Capacity: 15000 mAh (15Ah)
  • Maximum Runtime: 3 Hours
  • Charging Temperature Range: Refer to IEC 62133-2 report 37°F - 134°F
  • Charging Temperature Range(Environment): 37°F - 134°F
  • Rated Voltage: 35.2V
  • Charging Voltage: 5A Version: 39V
  • Charge Time: 5A Version: 150 Minutes 10% To 90%
  • Maximum Runtime: 3 Hours
  • Lifespan: 2,000 Charge Cycles
• Weight: 35.6 kg ±450 g
