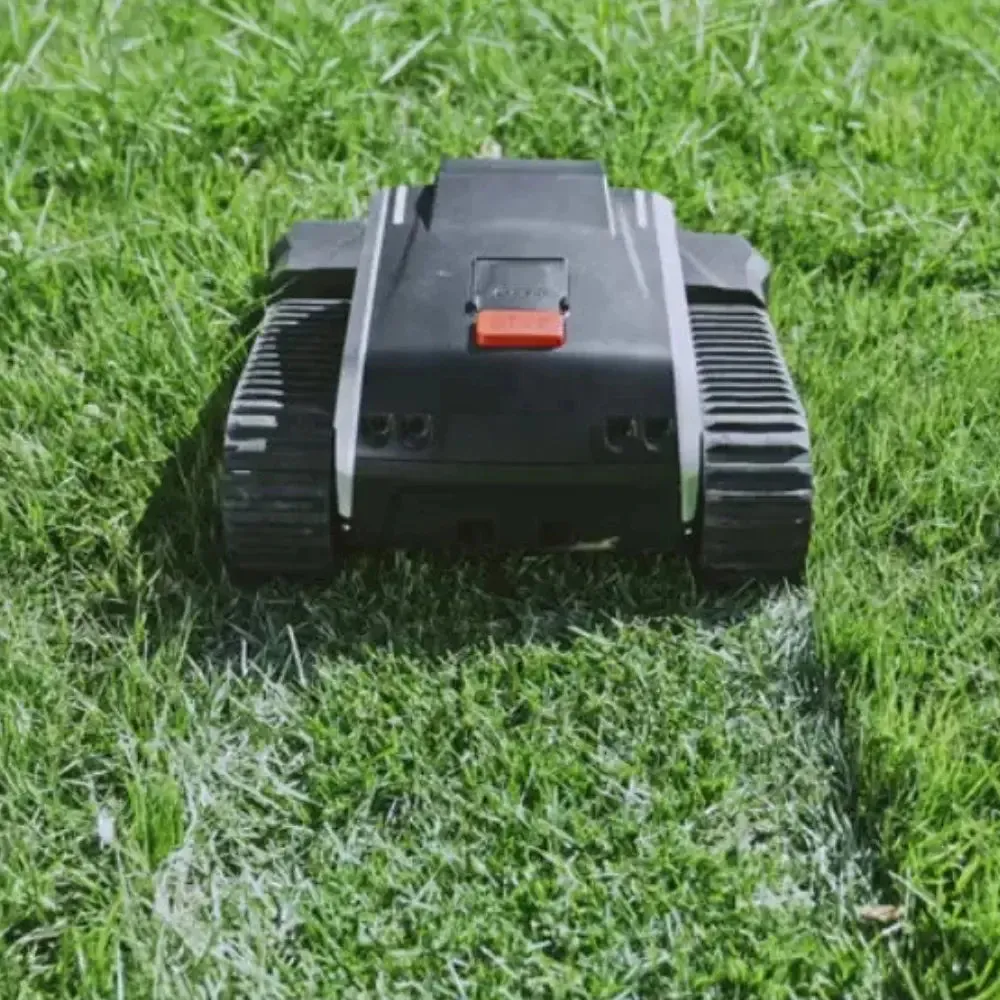

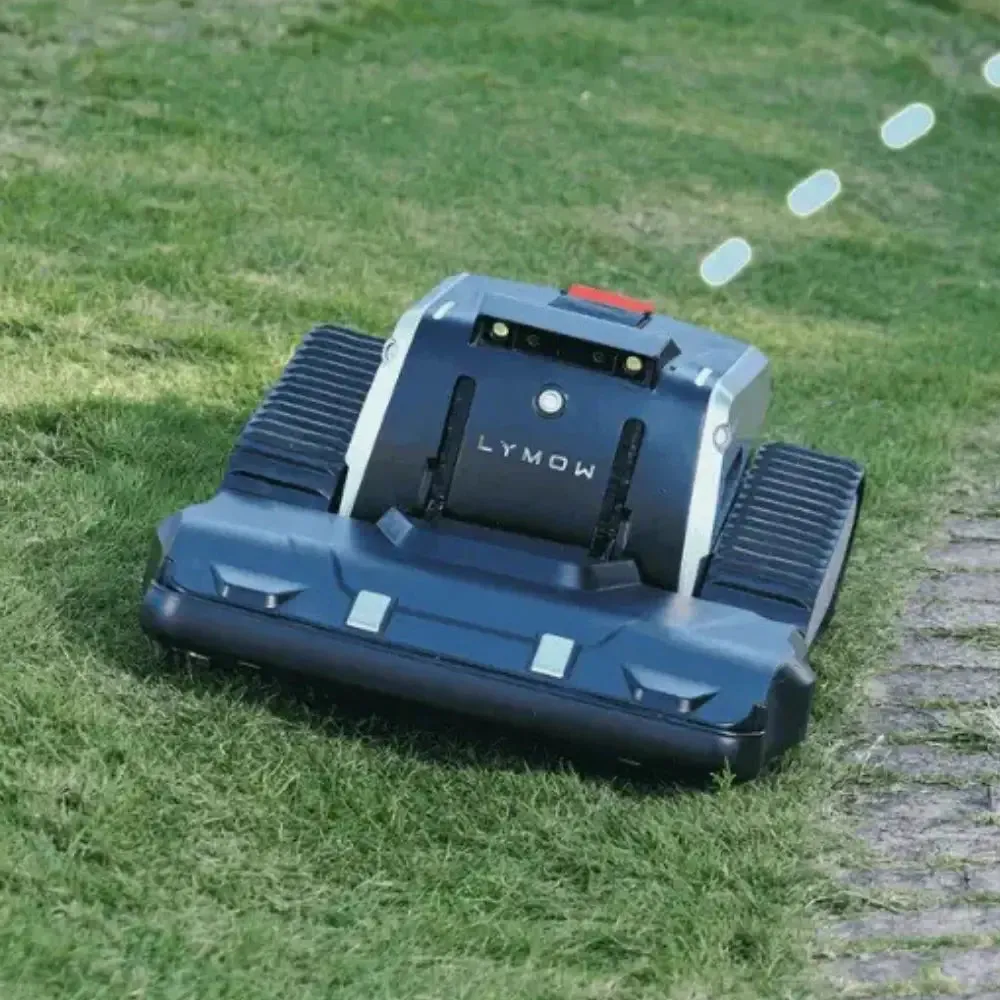

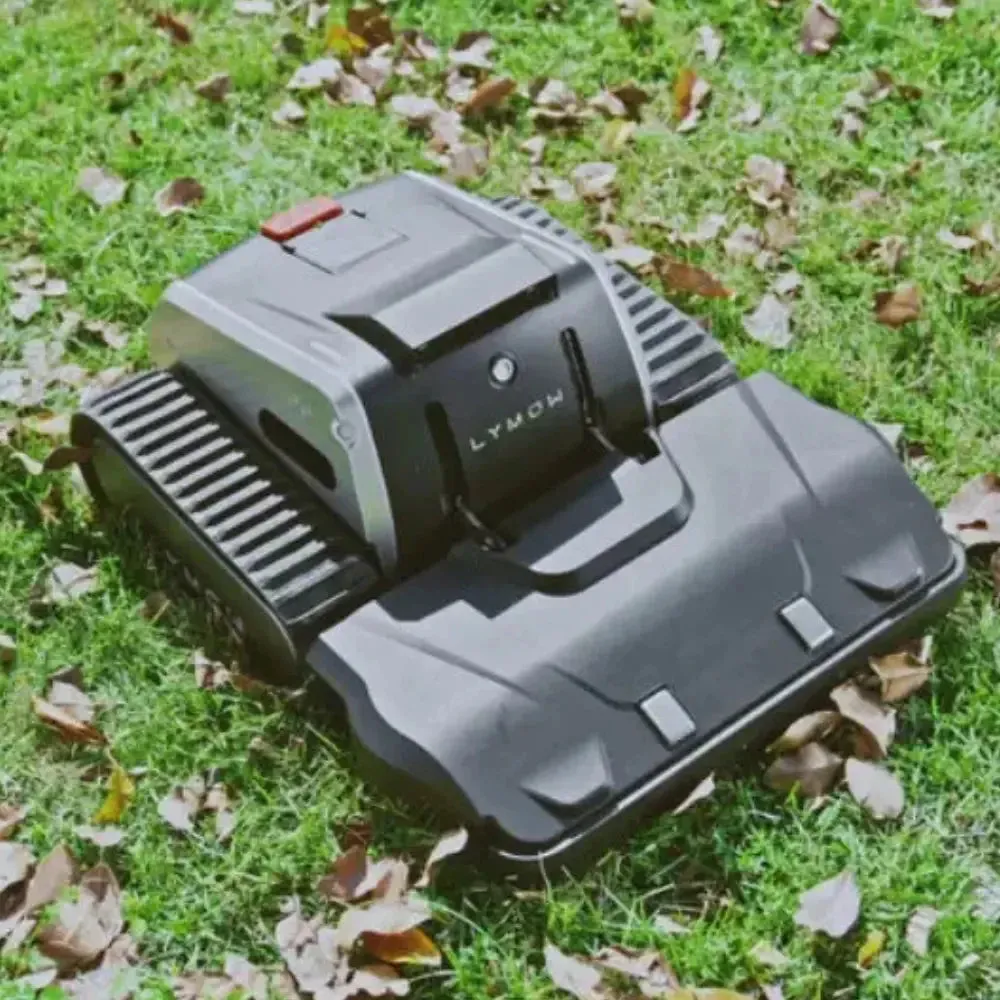

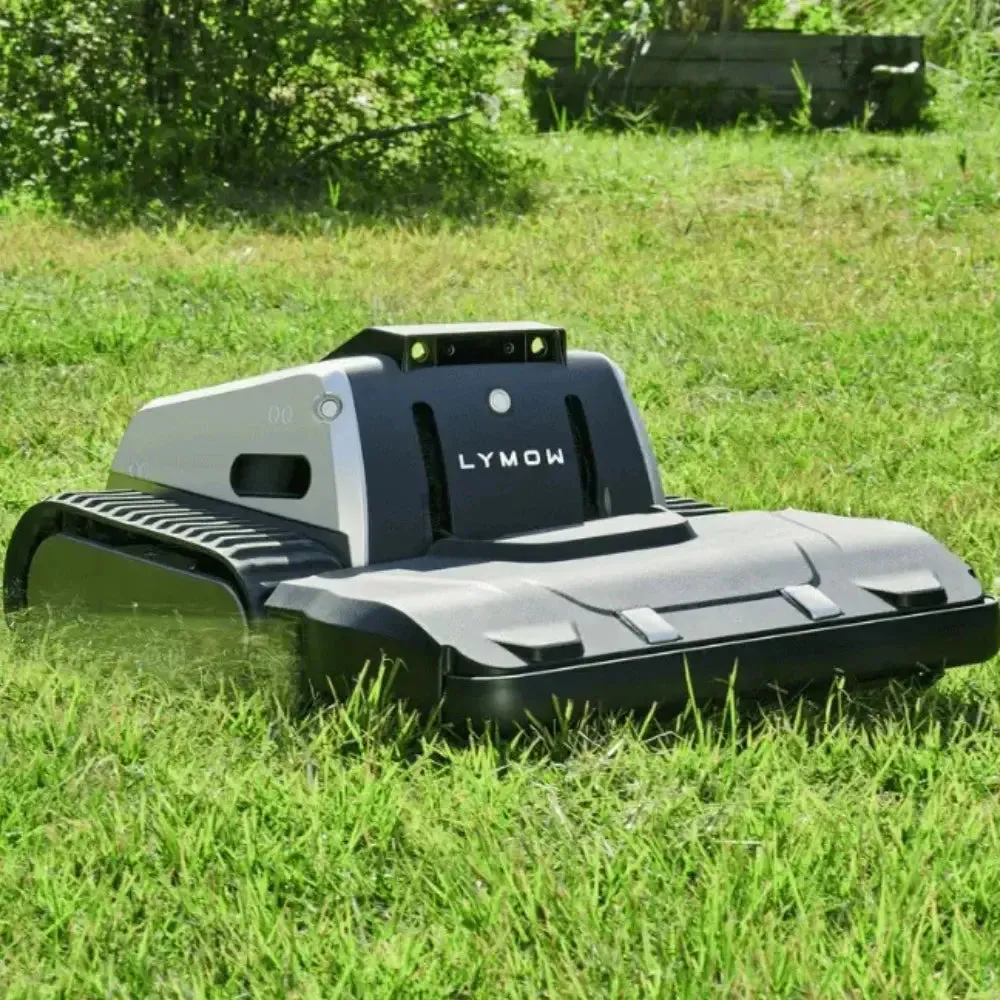

Lymow One Plus 10A Robotic Lawn Mower

Description

• Lymow One Plus 10A Robotic Lawn Mower
• Maintain 1.73 acres/day efficiently
• Navigate precisely with RTK and VSLAM
• Handle slopes up to 45° effortlessly
• Avoid obstacles with AI and sensors
• Control 80 zones via smart app

The Lymow One Plus 10A Robotic Lawn Mower is an advanced lawn care solution engineered for high efficiency, capable of maintaining up to 1.73 acres of lawn per day. This robotic mower is equipped with dual rotary blades that utilize cyclone airflow technology, ensuring a precise and thorough cut. Its design includes tracked treads, enabling it to handle slopes with an incline of up to 45 degrees, making it suitable for varied terrains.

The mower employs wire-free smart navigation, integrating RTK and VSLAM technologies for accurate and efficient path planning. It is further enhanced by auto obstacle avoidance capabilities, utilizing AI vision and ultrasonic sensors to navigate around obstacles seamlessly. Constructed with an A380 aluminum frame, the mower is both durable and reliable, promising longevity and consistent performance.

Powering the Lymow One Plus 10A is a robust 2,000-cycle LiFePO₄ battery, ensuring extended operational life and reduced maintenance needs. The accompanying smart app provides users with the ability to manage up to 80 distinct zones, offering flexibility and control over lawn maintenance schedules and patterns.

Note: Ensure the mower is operated in accordance with safety guidelines to prevent accidents or damage.

• 1x Lymow One Plus 10A Robotic Lawn Mower
• 1x Charging Station
• 1x Charging Station Adaptor
• 1x Charging Station Extension Cable (10M)
• 4x Ground Stake
• 1x RTK Reference Station
• 1x Radio Antenna
• 2x Mounting Pole
• 1x Wall Mount Bracket
• 1x Ground Stake for RTK
• 4x Expansion Bolt
• 1x RTK Power Adaptor
• 2x RTK Station Extension Cable (5M)
• 1x User Manual
• 1x Quick Start Guide

• 29.5 x 23.6 x 12.6 inches
• Obstacle Crossing Height: 2.8 inch
• Cutting Height: 1.2 - 4.0 inch
• Cutting Width: 16 inch

• Waterproof Level: IPX6
• Operating Ambient Charge Temperature: 37°F - 134°F
• Operating Ambient Discharge Temperature: 1°F - 134°F
• Storage Temperature: -4°F - 131°F
• Navigation System
  • Navigation Methods: RTK+VSLAM
  • RTK Coverage Radius: Up To 3,200 ft
  • Mowing Area Without RTK: 0.025 - 0.037 Acres
  • Mowing Time Without RTK: Up to 10 Minutes
  • Map Storage Capacity: 15 Acres
  • Multi-Zone Management: Up To 80 Zones
  • Connectivity: Bluetooth, Wi-Fi, And 4G
  • Cliff Detection: 2 Hall Sensors
  • Obstacle Avoidance: Al Vision + 5 Ultrasonic Sensors + 2 Hall Sensors
• Traverse System
  • Slope Handling: Up To 45° (100% Incline)
• Mowing System
  • Blade Type: Equipped: Rotary Mulching Blades
  • Mowing Speed: 1.0 ft/s - 3.3 ft/s
  • Blade Speed: 3,000 - 6,000 RPM
  • Rated Power Output: 680 W
  • Peak Power Output: 1,785 W
  • Maximum Coverage Per Hour: 0.23 Acres
  • Maximum Coverage Per Charge: 0.57 Acres
  • Maximum Coverage Per Day: 1.73 Acres
  • Mow Up To: 12 Acres
• Electric System
  • Battery Type: LiFePO₄
  • Battery Capacity: 15000 mAh (15Ah)
  • Maximum Runtime: 3 Hours
  • Charging Temperature Range: Refer to IEC 62133-2 report 37°F - 134°F
  • Charging Temperature Range (Environment): 37°F - 134°F
  • Rated Voltage: 35.2V
  • Charging Voltage: 10A Version: 40.5V
  • Charge Time: 10A Version: 90 Minutes 10% To 90%
• Maximum Runtime: 3 Hours
• Lifespan: 2,000 Charge Cycles
• Weight: 35.6 kg ±450 g
