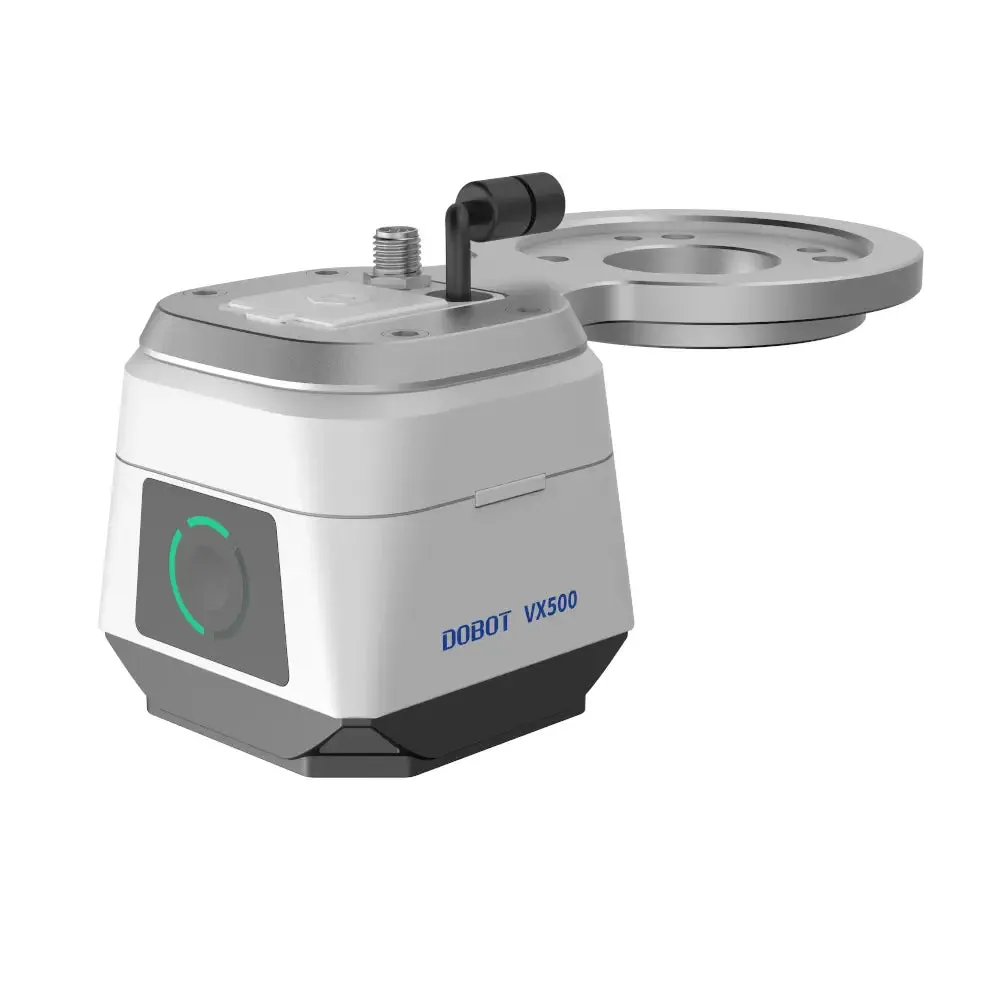

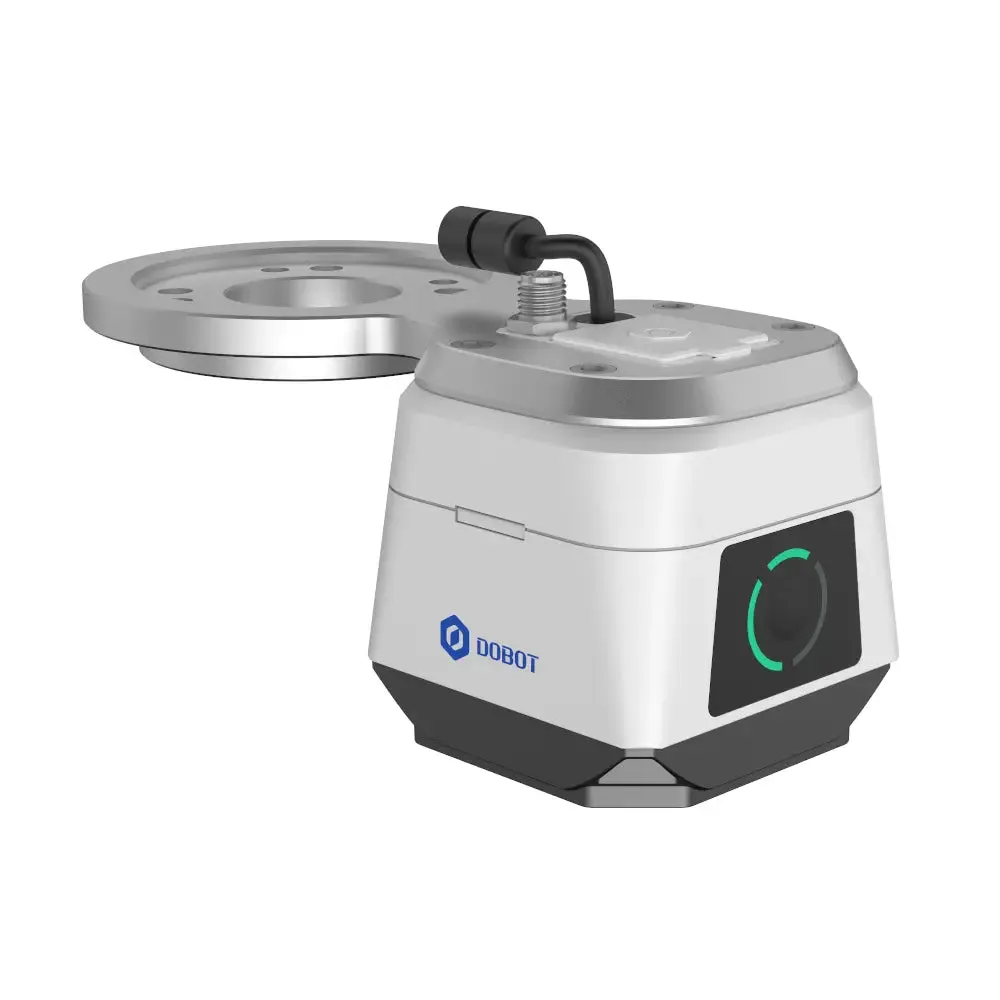

Dobot VX500 Smart Camera

Description

• DOBOT VX500 Smart Camera
• Enhances precision with 5MP camera
• Integrates advanced fault prevention
• Supports DobotStudio Pro software
• Automates tasks in various industries
• Ensures safety and functionality

The DOBOT VX500 Smart Camera is a sophisticated imaging device equipped with a 5-megapixel camera and an LED light source, designed to enhance precision in various industrial applications. It incorporates Dobot's proprietary 2.5D spatial compensation technology, which ensures a positioning accuracy of ±0.26 mm, making it adept at handling tasks such as grabbing objects on slanted surfaces, assembly in fixed positions, and facilitating AMMR robot transportation.

This technology also allows the camera to accurately determine the horizontal and tilt angles of target objects with an accuracy of up to ±0.5 mm, enabling robots to manage complex scenarios involving uneven floors and disordered objects effectively. The VX500 integrates advanced fault prevention inspection algorithms, essential for tasks like material positioning, barcode and character identification, and measurements of width, diameter, and grayscale.

It operates seamlessly with the DobotStudio Pro software, which simplifies the setup of solutions through intuitive guidance and supports graphical programming to enhance deployment efficiency. This smart camera is particularly beneficial in industries such as semiconductor manufacturing, where cleanliness is paramount, and healthcare, where consistent performance is crucial. It also supports educational initiatives by providing a platform for learning robotics and automation. In metal processing, automotive, food and beverage, and consumer electronics sectors, the VX500 aids in automating workflows, improving efficiency, and reducing the risk of workplace injuries.

Note: Ensure proper handling and installation to maintain safety and functionality.

• 1x DOBOT VX500 Smart Camera

• Camera
  • Pixel Size: 3.2 µm x 3.2 µm
  • Sensor Size: 1/1.7 inch

PDF File

• DOBOT VX500 Smart Camera - Datasheet

• Camera
  • Sensor Type: CMOS, global shutter
  • Resolution: 2368 x 1760
  • Pixel Format: Mono 8
  • Color: Black & White
  • 5-megapixel camera
• Components
  • Lens Connector: M12 mount, mechanical focusing
  • Focal Length: 12.4 mm

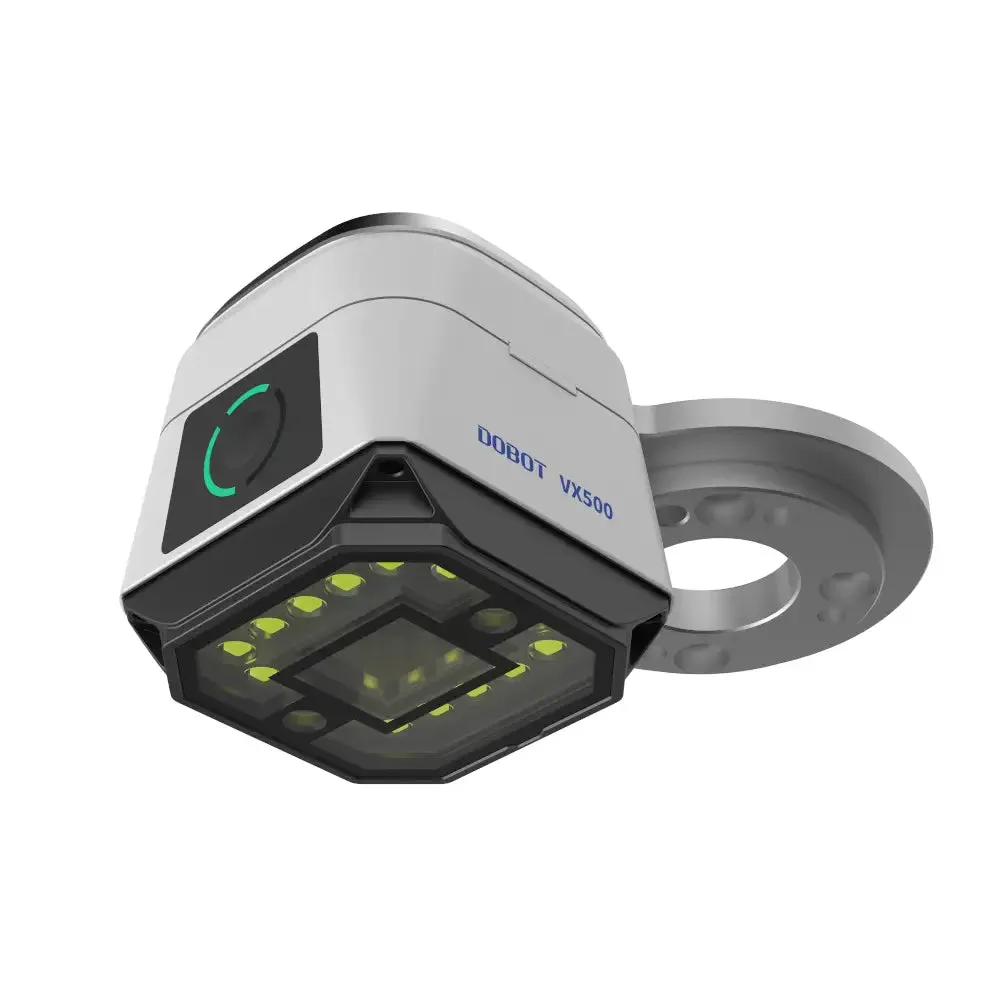

  • Light Source: 14 LED, White
• Dobot self-developed 2.5D spatial compensation technology
• ±0.26 mm positioning accuracy
• ±0.5 mm accuracy for identifying horizontal and tilt angles
• Integrates fault prevention inspection algorithms
• Supports material positioning, barcode and character identification, width, and diameter measurement, grayscale measurement
• Compatible with DobotStudio Pro operation software
• Supports graphical programming
